LAD-360 series is a 360W economical AC/DC low profile security power supply with UPS function. Adopting the input range from 90Vac to 264Vac (115Vac/230Vac selectable by switch) and supports output 27.6V.41.5V and 55.2Vdc.With high efficiency up to 86.5% and built-in AC, battery switch for easy maintenance. In addition, LAD-360 series not only provide TTL signals for AC OK, battery disconnect, battery reverse polarity (No damage battery low detection. battery full and discharae, but a so possess Arversion so the users can monitor and controthe status of the units. that enhance easy way for integration into security and fire systems directly.

LAD-360 series 360W Economical Security/Fire Alarm PSU with Battery Charger/UPS

Brand：MeanWellReference price：

$49.71 – $61.14

LAD-360 series is a 360W economical AC/DC low profile security power supply with UPS function. Adopting the input range from 90Vac to 264Vac (115Vac/230Vac selectable by switch) and supports output 27.6V.41.5V and 55.2Vdc.With high efficiency up to 86.5% and built-in AC, battery switch for easy maintenance. In addition, LAD-360 series not only provide TTL signals for AC OK, battery disconnect, battery reverse polarity (No damage battery low detection. battery full and discharae, but a so possess Arversion so the users can monitor and controthe status of the units. that enhance easy way for integration into security and fire systems directly.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
-20~+60℃ wide operating temperature
1U low profile (30mm)
3 years warranty
Built-in AC and battery circuit ON/OFF switchs enhance safetyness during maintenance
Built-in battery charger and UPS function
Built-in buzzer alarm
Design refer to GB17945/GB4717 system requireme
Forced UPS mode for battery maintenance
Output voltage adjustable (-20%~+5%) for CH1 by VR
Protections:Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity(No damage)
Suitable for lead acid and lithium-ion batteries
TTL signals for status detection: AC OK,Battery disconnect,Battery reverse polarity,Battery low, Battery full and Discharge
UART Communication
Applications：
Central monitoring system
Fire emergency and evacuation system
Industrial automation
Public safety battery back-up
Security system
Uninterruptible DC-UPS system
DC Option（V）：
27.6
41.5
55.2
  • LAD-360 series 360W Economical Security、Fire Alarm PSU with Battery Charger、UPS

    Model：LAD-360-【B/C/D】

    Reference price：$49.71

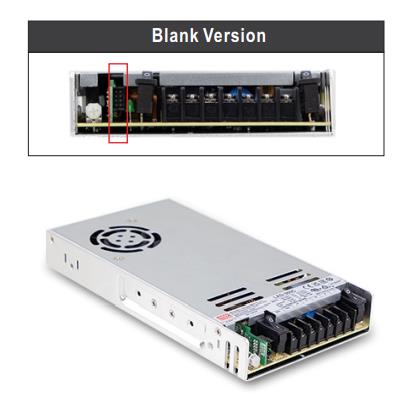

    Description：TTL signal only,Battery full and Discharge,Output voltage:B: 27.6V,C:41.5V,D:55.2V

  • LAD-360-U series 360W Economical Security、Fire Alarm PSU with Battery Charger、UPS

    Model：LAD-360-【B/C/D】-U

    Reference price：$61.14

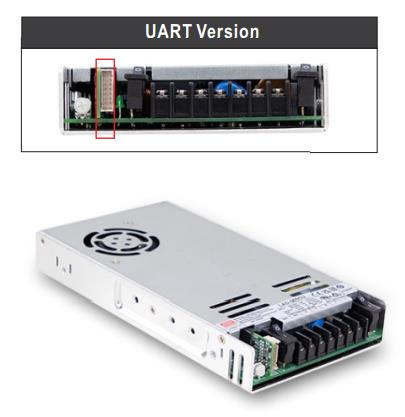

    Description：UART Communication,Built-in buzzer alarm,Design refer to GB4717,Output voltage:B: 27.6V,C:41.5V,D:55.2V
