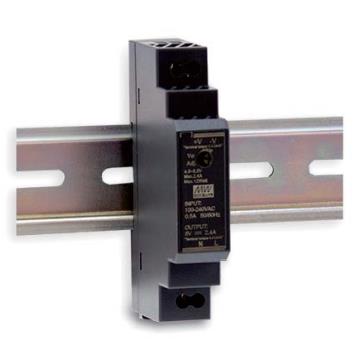

HDR-15 series 15W Ultra Slim Step Shape DIN Rail
$12.42
HDR-15 is one economical ultra slim 15W DIN rail power supply series. adapt to be installed on TS-357.5 or TS-35/15 mounting rails.The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC perational)
and conforms to BS EN/EN61000-3-2the norm the European Union requlates for harmonic current.
HDR-15 is desianed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1UL508UL62368-1BS EN/EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+70℃ working temperature
- 3 years warranty
- Cooling by free air convection
- DC output voltage adjustable
- DIN rail TS-35/7.5 or 15 mountable
- Isolation class Ⅱ
- LED indicator for power on
- No load power consumption<0.3W
- Pass LPS（Limited power source）
- Protections: Short circuit / Over load / Over voltage
- Ultra slim design with 17.5mm(1SU) width
- Universal input 85~264VAC(277VAC operational)
- Applications：
- Building automation
- Electro-mechanical apparatus
- Factory automation
- Household control system
- Industrial control system
- DC Option（V）：
- 5
- 12
- 15
- 24
- 48
-
Model：HDR-15-【5/12/15/24/48】
Reference price：$12.42
Description：
