RPD-75 is a 75W highly reliable green PCB type medical power supply with a high power density on the 5" by 3"footprint.It accepts 90~264VAC input and offers dual output voltages . RPD-75 is able to be used for classwith Ecsvstem desion.The extremelyow eakade current is less than 150uA.In addition,it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.

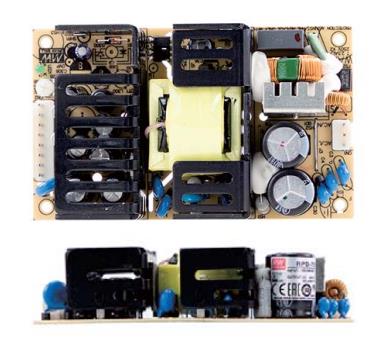

RPD-75 series 75W Reliable Dual Output Medical Grade

Brand：MeanWellReference price：

$26.00

RPD-75 is a 75W highly reliable green PCB type medical power supply with a high power density on the 5″ by 3″footprint.It accepts 90~264VAC input and offers dual output voltages . RPD-75 is able to be used for classwith Ecsvstem desion.The extremelyow eakade current is less than 150uA.In addition,it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
3 years warranty
5"x3" compact size
EMI Class B for Class Ⅰ configuration
Extremely low leakage current
Free air convection for rated power and 23.5CFM forced air convection for peak load
Lifetime> 140K hours
Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
Protections: Short circuit / Over load / Over voltage
Suitable for BF application with appropriate system consideration
Applications：
Hemodialysis machine
Medical computer monitor
Oral irrigator
Sleep apnea devices
DC Option（V）：
5
12
24
  • RPD-75 series 75W Reliable Dual Output Medical Grade

    Model：RPD-75B

    Reference price：$26

    Description：CH1:5V,CH2:24V

  • RPD-75 series 75W Reliable Dual Output Medical Grade

    Model：RPD-75A

    Reference price：$26

    Description：CH1:5V,CH2:12V
