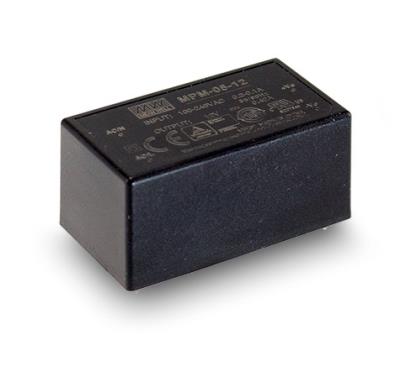

MPM-05 is a 5W high density and small size(45.7*25.4*21.5mm)AC/DC module type medical grade power supply series offered in pin type.It features the operation for 80~264VAC, a low no load power consumption less than 0.075W. a high efficiency up to 82%.ClassⅡ(no FG)double insulation. outstandina dissipation and hiah lifespan thanks to the interior potting.5Ganti-vibration.high EMC performance,4KVAC isolation, etc. The desian observesEC/BS EN/EN60601-1and ANSI/AAMlES60601-1version three with 2xMOPP evel and ultra-low leakage current(<80uA). It is very suitable for BFpatient contacttype medical device or relevant equipment.
