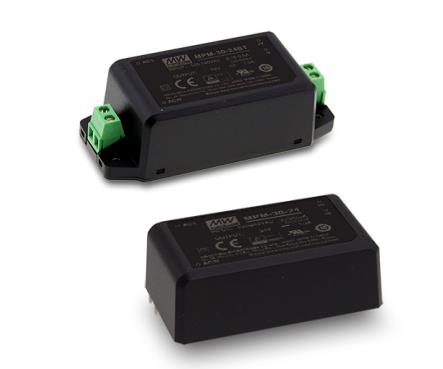

MPM-30 series 30W High Reliable Green Medical Encapsulated Type
$18.14 – $20.14
MPM-30 is a 30W high density and small size(69.5x39x24mm) AC/D module type medical power supply serles offered in pin type.lt features the operation for 80~264VAC, a low no load power consumption less than 0.075w. a hiah efficiency up to 91%.Class II (no FG) double insulation. outstandina dissipation and hiah lifespan thanks to the interior potting. high EMC performance.4KVAC isolationetc.PCB mounting style model(Blank) meet the anti-vibration demand up to 2G and screw terminal style model(ST) meet the anti-vibration demand up to 5G. The desian observesEC/BS=N/EN60601-1and ANS/AAMES60601-1version three with 2xMOPP level and ultra-low leakaae current <80uA It is very suitable for BE(patient contact tvpe medica device or relevant equipment. In addition to PCB mounting style,MPM-30 series also offers the screw terminal style model(ST).
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- 2.73"x1.53" compact size
- 3 years warranty
- EMI class B for class Ⅱ configuration
- Extremely low leakage current
- Medical safety approved(2 xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BSEN/EN60601-1
- No load power consumption<0.075W
- No minimum load required
- Protections: Short circuit / Over load / Over voltage
- Suitable for BF application with appropriate system consideration
- Wide operating temp.range -40~+85℃
- Applications：
- Medical computer monitor
- Medical examination instrument
- Mobile clinical workstation
- Portable medical device
- DC Option（V）：
- 3.3
- 5
- 12
- 15
- 24
- 48
-
Model：MPM-30-【option】
Reference price：$18.14
Description：Blank: PCB mounting style
-
Model：MPM-30-【option】-ST
Reference price：$20.14
Description：ST:Screwterminal style
