NPB-120 series is a 120W charger for compatible with lead-acid(Flooded,Gel,AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a classI power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
NPB-120 series 120W Compact Size and Wide Output Range Charger
Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
Brand：MeanWellReference price：
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
$50.00
NPB-120 series is a 120W charger for compatible with lead-acid(Flooded,Gel,AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a classI power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+70℃ wide range operating temperature
- 2 or 3 stage selectable by DIP S.W
- 3 years warranty
- 90~264 Vac universal AC input,built-in PFC
- Charger for compatible with lead-acid and li-ion batteries
- Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification
- Fanless design
- Front panel LED indicator for charging status
- No load power consumption<0.15W
- Protections: Short circuit/Over voltage/Over temperature/ Battery reverse polarity protection
- Wide adjustable output range by VR: Charging voltage adjustable(10.5~15.2V、21~30.4V、42~60.8V) Charging current adjustable(50~100% rated current)
- Applications：
- Camping car、Buses、Heavy duty truck、Specialty vehicles
- Electric scooter charger
- Portable power tools
- Radio system backup solution
- Surveillance system
- DC Option（V）：
- 13.8
- 27.6
- 55.2

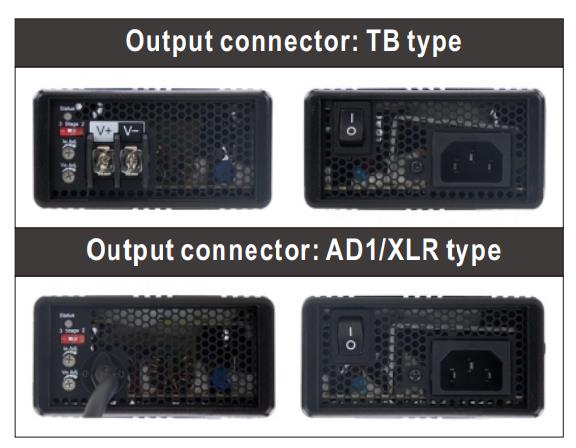

- Type：

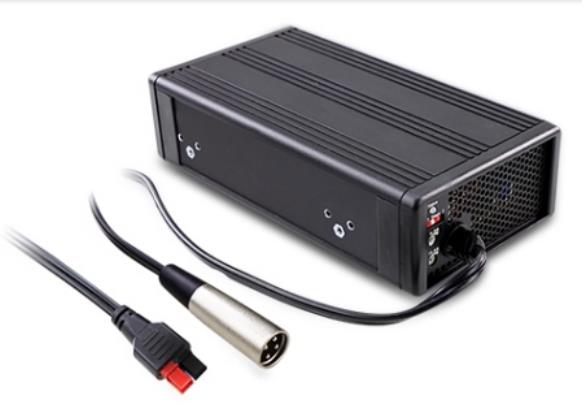

- XLR：3 pin power pin
- AD1：Anderson Equivalent Connector
- TB：Terminal Block
-
Model：NPB-120-12-【Type】
Reference price：$50
Description：
-
Model：NPB-120-24-【Type】
Reference price：$50
Description：
-
Model：NPB-120-48-【Type】
Reference price：$50
Description：
