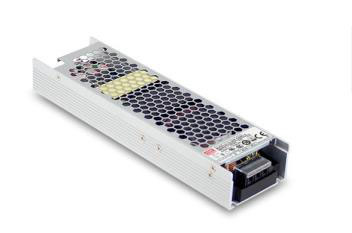

UHP-350 series 350W Slim Type with PFC Switching Power Supply
$48.00 – $55.00
UHP-350 series is a 350W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V. 4.2V.5V.12V, 15V,24v,36V.48V and 55V. In addition to the high efficiency up to 94%, that the whole serles operatestrom -30C~70C under air convection without fan. HP-350 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV BS EN/EN62368-1BS EN/EN60335-1UL 62368-1 and GB4943.UHP-350 seriesserves as a high performance power supply solution for various industrial applications.
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
- Features：
- -30~+70℃ working temperature
- 3 years warranty
- Built-in active PFC function
- DC OK active signal and redundant function(option)
- Fanless design,350W convection
- LED indicator for power on
- Operating altitude up to 5000 meter(Note.5)
- Protections: Short circuit/Over load/Over voltage/Over temperature
- Slim and Low profile (31mm)
- Withstand 300VAC surge input for 5 seconds
- Applications：
- Electronic instruments,equipments or apparatus
- Household appliances
- Industrial automation machinery
- Industrial control system
- LED display application
- Mechanical and electrical equipment or apparatus
- Power Source Equipment for PoE(55V model)
- DC Option（V）：
- 3.3
- 4.2
- 4.5
- 5
- 12
- 15
- 36
- 48
- 55
-
Model：UHP-350-【Option】
Reference price：$48
Description：Blank
-
Model：UHP-350-R-【Option】
Reference price：$55
Description：Built-in DC OK active signal and redundant function.
