NPB-360 series is a 360W charger for compatible with lead-acid(Flooded,Gel,AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a classI power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control.The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.

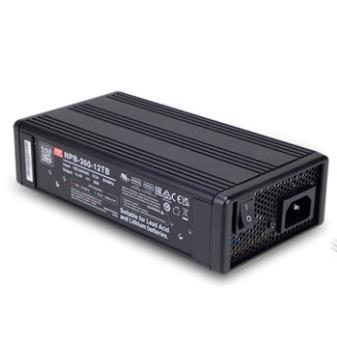

NPB-360 series 360W Compact Size and Wide Output Range Charger


Warning: Attempt to read property "name" on null in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/functions.php on line 937
Brand：MeanWellReference price：

$82.57

NPB-360 series is a 360W charger for compatible with lead-acid(Flooded,Gel,AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a classI power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control.The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
-30~+70℃ wide range operating temperature
2 or 3 stage selectable by DIP S.W
3 years warranty
90~264 Vac universal AC input,built-in PFC
Charger for compatible with lead-acid and li-ion batteries
Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification
Fan ON-OFF control (Depends on internal temperature)
Front panel LED indicator for charging status
No load power consumption<0.15W
Protections: Short circuit/Over voltage/Over temperature/ Battery reverse polarity protection
Wide adjustable output range by VR: Charging voltage adjustable(10.5~15.2V、21~30.4V、42~60.8V) Charging current adjustable(50~100% rated current)
Applications：
Camping car、Buses、Heavy duty truck、Specialty vehicles
Electric scooter charger
Portable power tools
Radio system backup solution
Surveillance system
DC Option（V）：
13.8
27.6
55.2

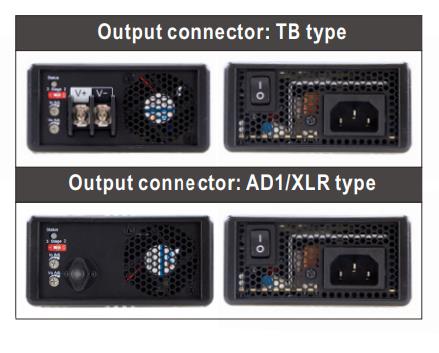

Type：

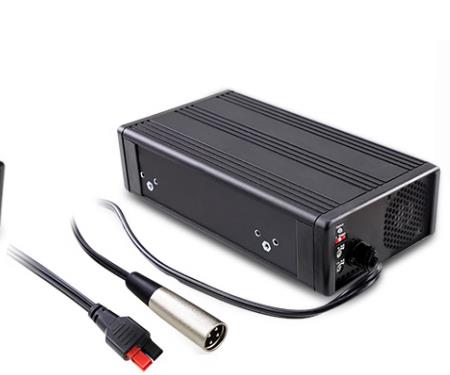

XLR：4 pin power pin
AD1：Anderson Equivalent Connector
TB：Terminal Block
  • NPB-360 series 360W Compact Size and Wide Output Range Charger

    Model：NPB-360-12-【Type】

    Reference price：$82.57

    Description：

  • NPB-360 series 360W Compact Size and Wide Output Range Charger

    Model：NPB-360-24-【Type】

    Reference price：$82.57

    Description：

  • NPB-360 series 360W Compact Size and Wide Output Range Charger

    Model：NPB-360-48-【Type】

    Reference price：$82.57

    Description：
