RCP-1600 is a 1.6KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power density up to 25W/inch3 This series operates for 90~264VAC input voltage and offers the modes with the dc outout mostly demanded from the industry.Each mode is coo ed by the bult-in DC fan with fan speed control. workina for the temperature up to 70℃.RCP-1600 provides vast desian flexibility by equipping various built-in functions such as the PMBus and CANBus communication protocol. output programmina. active current sharina up to 24000W via three 19"rack sheves.RHP-10). remote control,auxiliary power,alarm signal,etc. Maximum number that can be monitored by master controller in communication shall be 15 power supplies.

RCP-1600 series 1600W Single output 1U low profile rack-mountable Front End Rectifier

Brand：MeanWellReference price：

$477.71

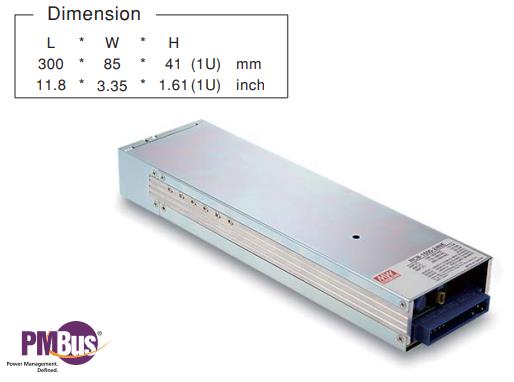

RCP-1600 is a 1.6KW single output rack mountable front end AC/DC power supply with a 1U low profile
and a high power density up to 25W/inch3 This series operates for 90~264VAC input voltage and offers
the modes with the dc outout mostly demanded from the industry.Each mode is coo ed by the bult-in
DC fan with fan speed control. workina for the temperature up to 70℃.RCP-1600 provides vast desian
flexibility by equipping various built-in functions such as the PMBus and CANBus communication protocol.
output programmina. active current sharina up to 24000W via three 19″rack sheves.RHP-10). remote
control,auxiliary power,alarm signal,etc. Maximum number that can be monitored by master controller
in communication shall be 15 power supplies.


Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87

Warning: Undefined variable $option in /www/wwwroot/www.meanwellsps.com/wp-content/themes/sytech/parts/content-product-sku-info.php on line 87
Features：
5 years warranty
Active current sharing up to 8000W for one 19" rack shelf
Built-in active PFC function
Built-in I2C interface. PMBus protocol (Optional CANBus protocol)
Built-in OR-ing FET, support hot swap(hot plug)
Forced air cooling by built-in DC fan
High efficiency up to 93%
Optional conformal coating
Output voltage and constant current level programmable
Protections: Short circuit/Over load/Over voltage/Over temperature
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Applications：
Constant current source system
Distributed power architecture system
Electric vehicle charger system
Industrial automation
Redundant power system
Wireless/telecommunication solution
DC Option（V）：
12
24
48
  • RCP-1600 series 1600W Single output 1U low profile rack-mountable Front End Rectifier Meanwell power supply

    Model：RCP-1600-12-【PMB/CAN】

    Reference price：$477.71

    Description：

  • RCP-1600 series 1600W Single output 1U low profile rack-mountable Front End Rectifier Meanwell power supply

    Model：RCP-1600-24-【PMB/CAN】

    Reference price：$477.71

    Description：

  • RCP-1600 series 1600W Single output 1U low profile rack-mountable Front End Rectifier Meanwell power supply

    Model：RCP-1600-48-【PMB/CAN】

    Reference price：$477.71

    Description：
